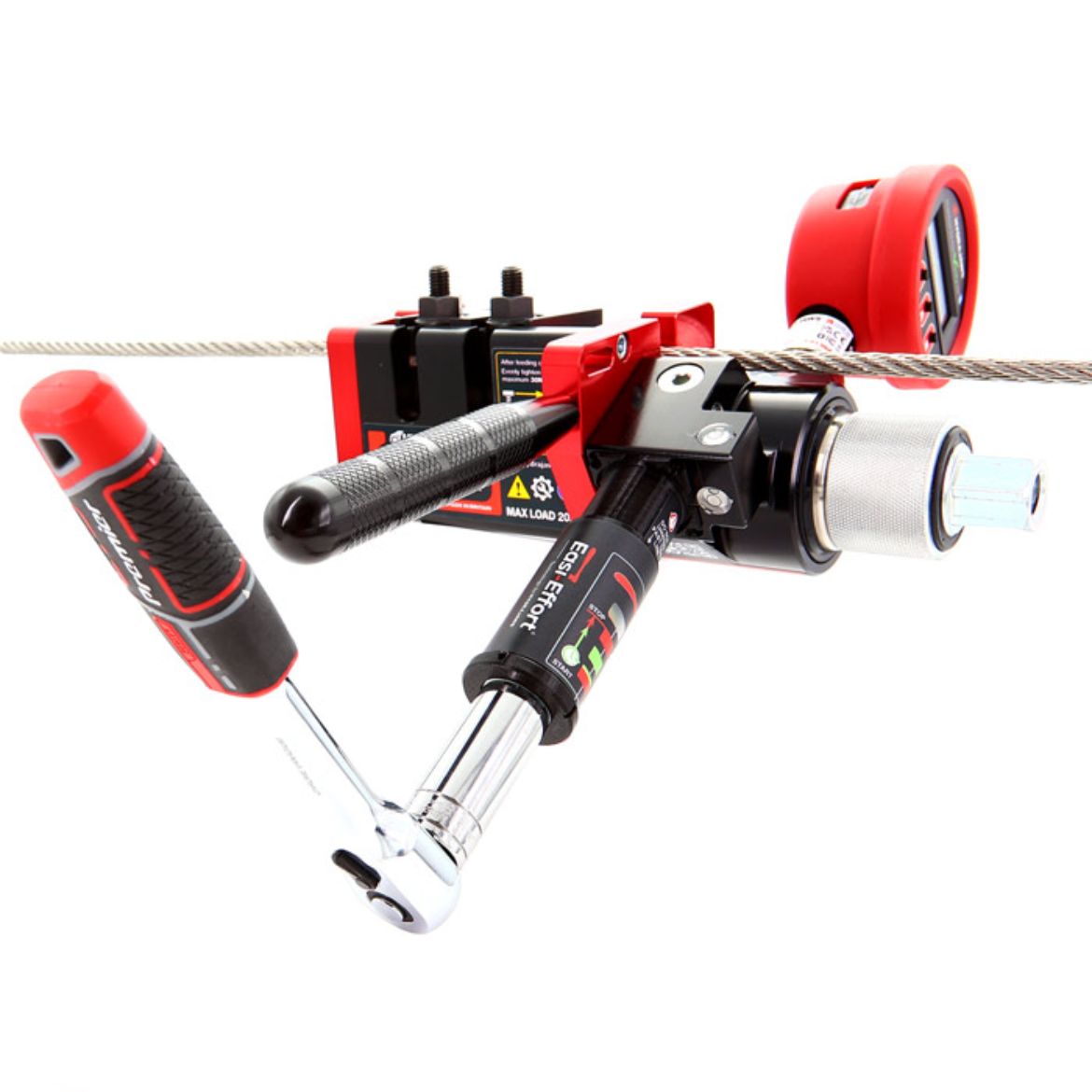

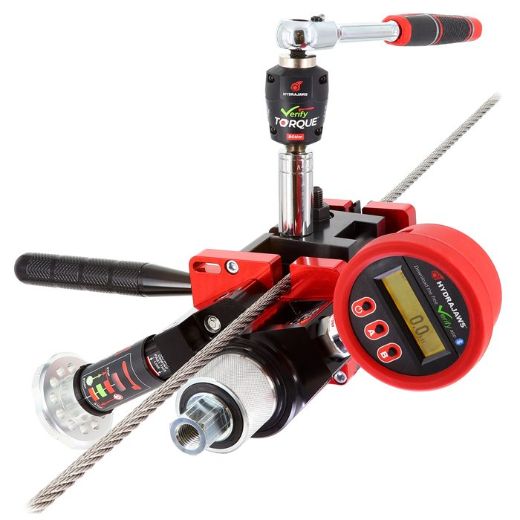

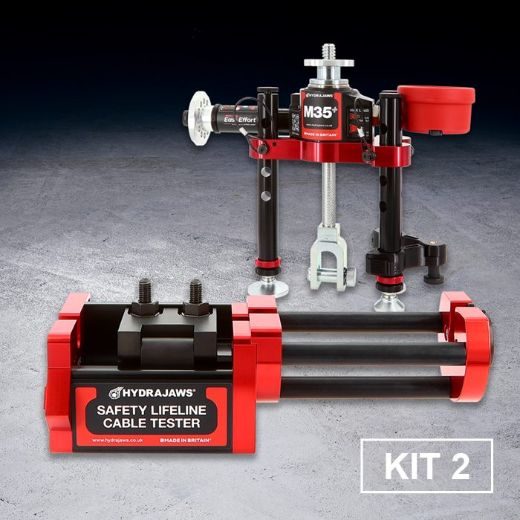

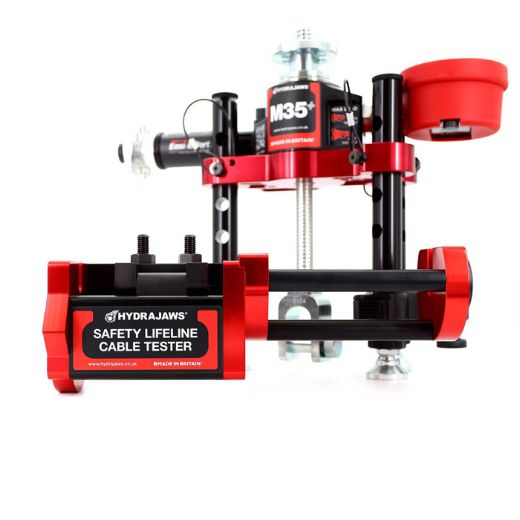

M35+ SAFETY LIFELINE METRIC TESTER KIT 2 (CASE) ASM

The upgraded Hydrajaws Safety Lifeline Cable Tester KIT 2 is a complete kit enabling engineers to validate the installation of anchors, and eyebolts up to a maximum tensile load of 35kN (7868lbf) and swaged components on newly installed or existing engineered lifeline systems to ensure compliance with BS 7883 up to a maximum tensile load of 25kN (4496lbf). The upgraded 2024 edition of the Hydrajaws Safety Lifeline Cable Tester KIT 2 — comprehensive kit features a redesigned, lightweight, and compact form factor that enhances usability and convenience. Manufactured to exact high standards, the Hydrajaws Safety Lifeline Cable Tester frame clamps directly to the 8mm wire rope. It comes with all the accessories to test existing installations including those with long terminating assemblies without any additional parts needed.
SKU: 030-007
Availability:
In stock
Price: £3,379.00
i h h

Features

  • 0-35kN Dual Scale rechargeable digital gauge compatible with the latest Hydrajaws Verify App
  • Single hinge clamp arrangement with swing bolt design
  • Cable test frame with extension bars.
  • Hydrajaws gauge calibration certificate (valid for 12 months).
  • It is supplied in a robust protective carry case with full operating instructions.

Kit includes the following:

  • Hydrajaws M35+ Tester with Standard Bridge
  • Hydrajaws 80Nm Verify Torque
  • 24mm ratchet spanner
  • Ratchet wrench with 17mm socket
  • 14mm spanner
  • Ball drivers
  • 8mm Barrel clamp
  • 12mm slotted adaptor
  • Extension collar insert 12mm
  • Extra extension rods
  • Knurled adaptor 8mm (10mm & 12mm optional)
  • 6mm hex key
  • Mini clevis adaptor
  • Bolt tester adaptor
  • Slotted and threaded adaptors
  • Tool lanyards
*
*
*
