M2000 PRO Tester Kit with Analogue Gauge (Metric)

The Hydrajaws M2000 PRO Anchor Tester Kit contains a universal set of adaptors enabling a comprehensive range of fixings and safety-critical applications, up to a maximum tensile load of 25kN (5620lbf) to be tested. Trusted by market-leading companies worldwide, the M2000 PRO Tester Kit is an essential tool for carrying out testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012 and AEFAC-TN05. The M2000 PRO Tester Kit is easy to use and easily transported. It comes complete with a comprehensive full-colour user manual and backing and support from our technical team at Hydrajaws
SKU: 200-001
Digital Downloads
Availability:
In stock
Price: £1,674.63
i h h

Features

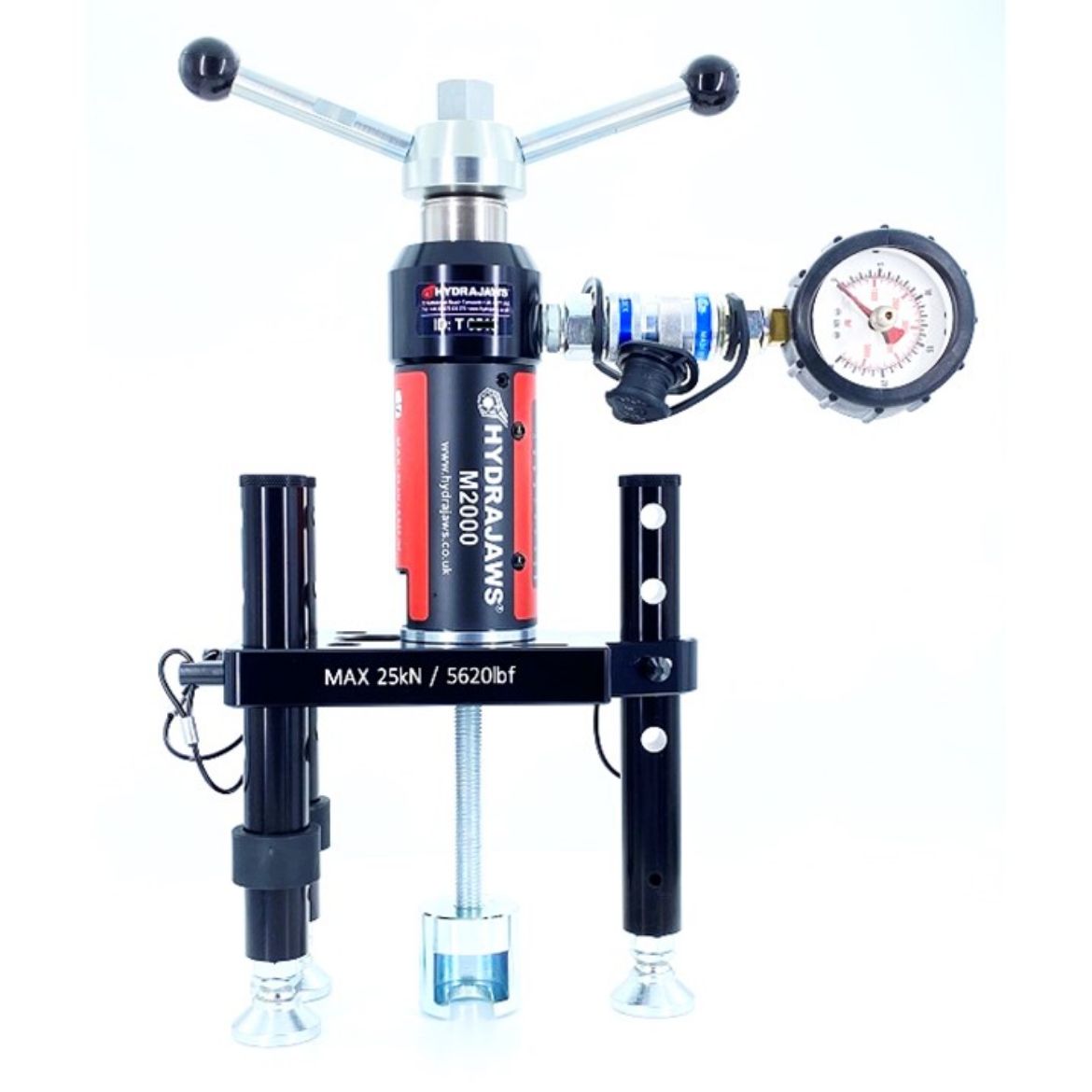

  • 0-25kN Dual Scale analogue gauge (detachable for calibration, reducing carrier return costs).
  • 2020 Load spreading bridge featuring height adjustable legs with pin arrangement in four positions with swivel feet giving 15mm of fine adjustment.
  • Turning Handle with 22mm (7/8") integrated nut (for use in confined spaces).
  • Up to 50mm of stroke.
  • The anchor tester is preassembled and accessories can be quickly attached with ease.
  • Hydrajaws gauge calibration certificate (valid for 12 months).

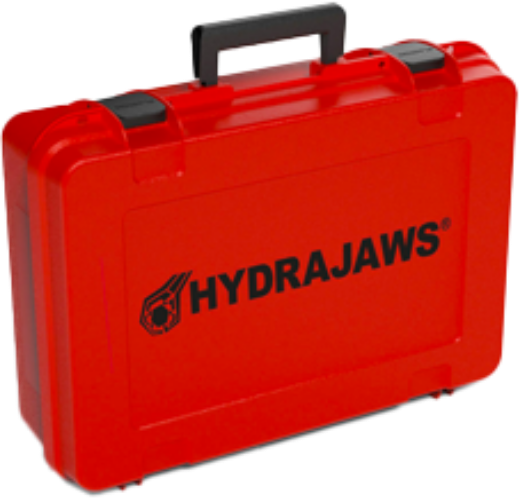

  • Supplied in a robust protective carry case with full operating instructions.

Kit includes the following adaptors:

  • M12 Ringbolt adaptor clevis
  • Bolt tester adaptor with M12 locking adaptor
  • M16 & M20 Threaded stud adaptors
  • Six slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 12.5mm
  • Six threaded button adaptors: M4, M5, M6, M8, M10, M12
*
*
*
