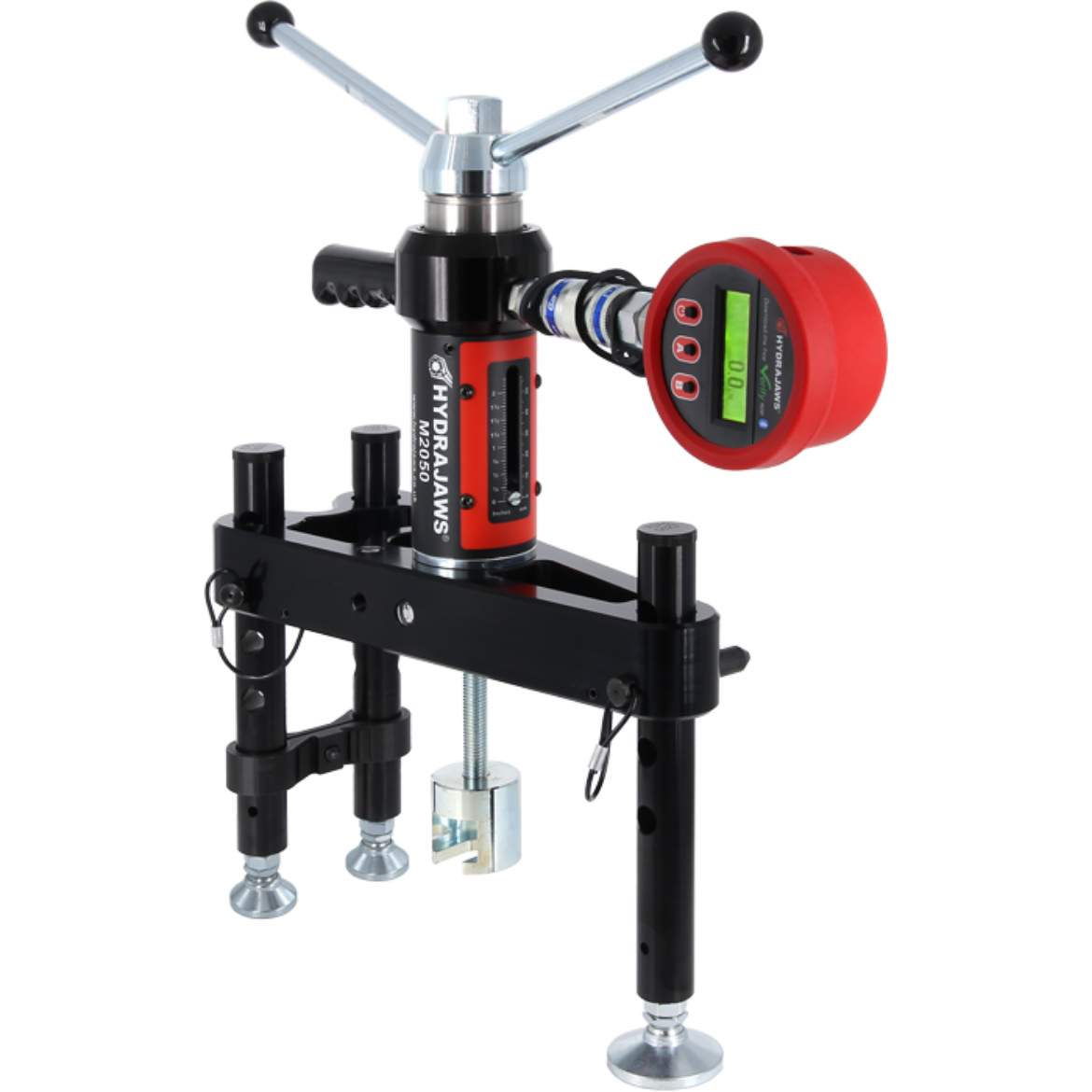

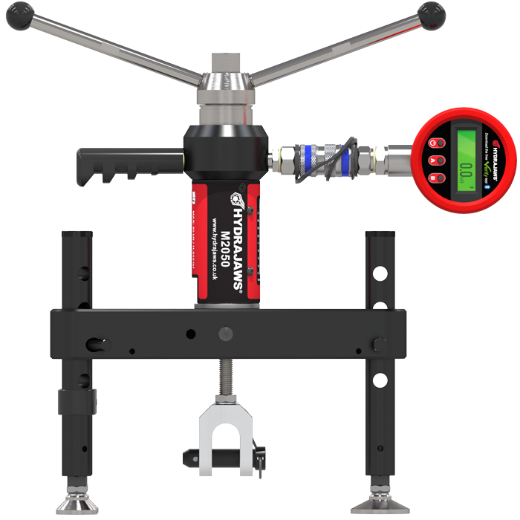

M2050 PRO Tester Kit with Rechargeable Digital Gauge (Metric)

Manufacturer:
Extending the testing range to cover 0-50kN, the Hydrajaws M2050 PRO Tester Kit enables engineers to validate the correct installation or establish the safe working loads of a comprehensive range of anchors & fixings in line with BS 8539, BS 7883, BS EN 795 and AEFAC-TN05 up to a maximum tensile load of 50kN (11240lbf). Manufactured to exacting high standards, the Hydrajaws M2050 PRO Tester kit contains a universal set of adaptors allowing a wide range of anchors and fixings used in safety-critical applications to be tested. The three-legged load spreading bridge keeps reaction loads away from the fixing allowing results to be more consistent. Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System.
SKU: 250-002
Digital Downloads
Availability:
Out of Stock - New Stock Arriving Soon
Price: £2,760.45
i h h

Features

  • 0-50kN Dual Scale rechargeable digital gauge compatible with the latest FREE Hydrajaws Verify PRO App (detachable for calibration, reduces carrier return costs).
  • 2050 Load-spreading bridge featuring height-adjustable legs with pin arrangement in six positions and swivel feet allowing for 30mm of fine adjustment.
  • Turning Handle with 24mm integrated nut (for use in confined spaces)
  • Up to 50mm of stroke
  • The tester is preassembled and accessories can be quickly attached with ease
  • Hydrajaws gauge calibration certificate (valid for 12 months)

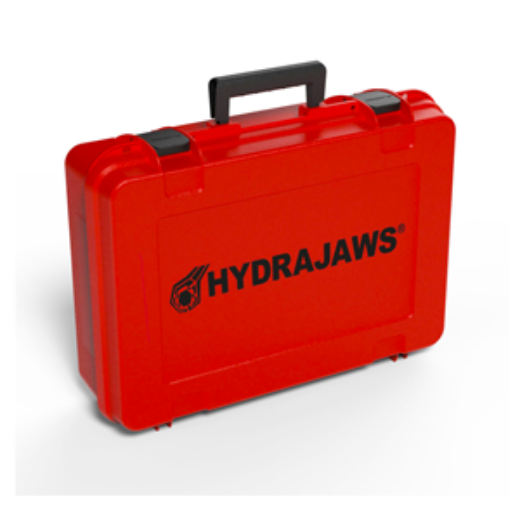

  • Supplied in a robust protective carry case with full operating instructions.

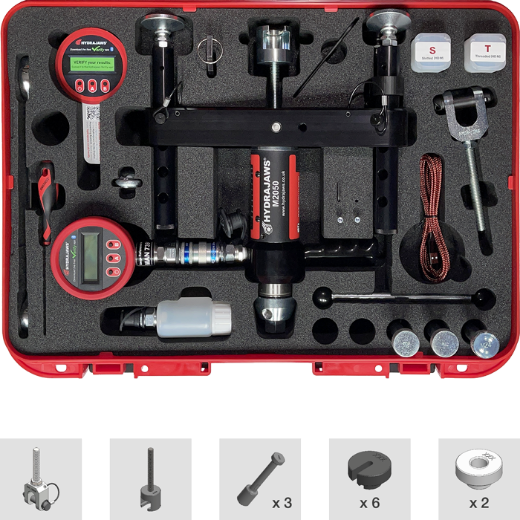

Kit includes the following adaptors:

  • M12 Ringbolt Adaptor Clevis
  • Bolt tester adaptor with M12 locking adaptor
  • M10, M12 Threaded button adaptors
  • Six slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 12.5mm
  • M16, M20 & M24 Threaded stud adaptors
*
*
*
