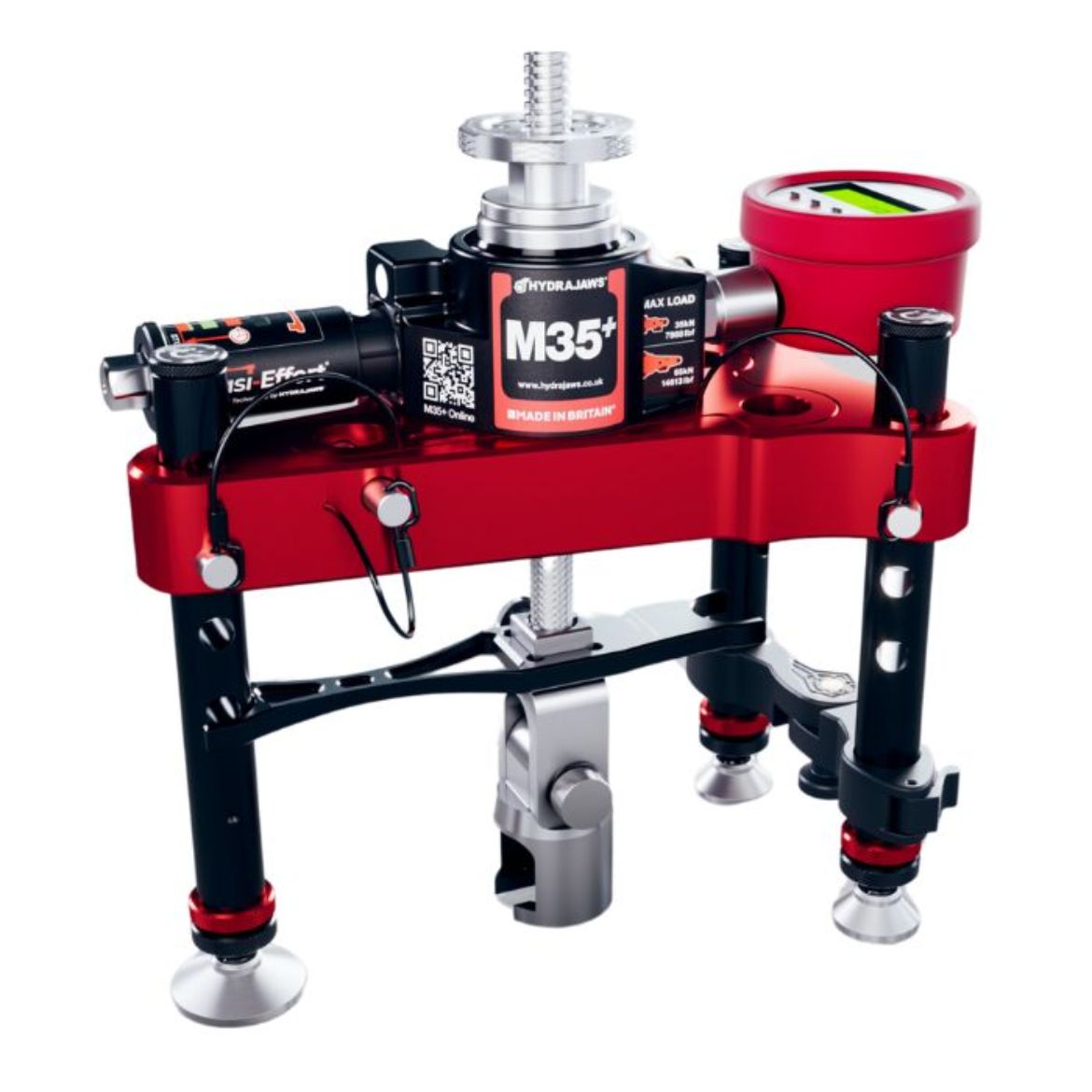

M35+ Dual Load Capacity Digital Pull Tester 65kN/14613 lbf (Imperial) in Rucksack

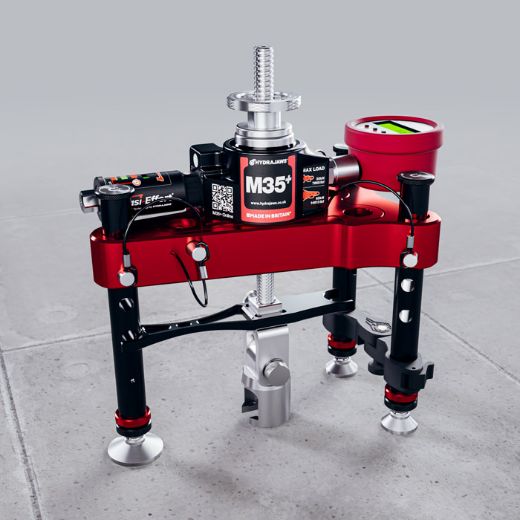

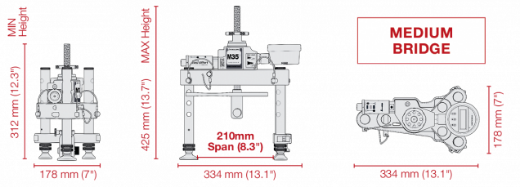

The Hydrajaws M35+ Easi-Effort® Dual Load Capacity Digital Pull Tester 65kN can test up to 65kN/14613 lbf when attached to the medium bridge supplied with the kit. This lightweight and ergonomic pull tester is enhanced by Easi-Effort® Technology, increasing testing frequency and reducing operator effort. It is an essential tool for carrying out pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05. The Hydrajaws M35+ arrives in a compact, tailor-made rugged rucksack, engineered for easy transportation to even the most remote and challenging job sites. Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System.
SKU: 290-002
Digital Downloads
Availability:
Out of Stock - New Stock Arriving Soon
Price: £2,295.00
i h h

Features

  • The M35+ boasts impressive ‘Easi-Effort®’ technology increasing testing frequency and reducing operator effort.
  • Lightweight and Durable – Crafted from top-grade materials including titanium, the Hydrajaws M35+ is the most lightweight pull tester on the market and is built to withstand the toughest environments.

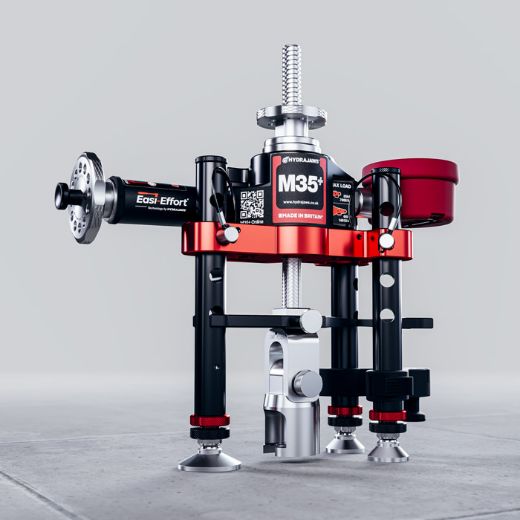

  • Modular Dual Load Capacity – The powerful tester not only has a 3.5-ton capacity in standard guise, but it also has a 6.5-ton capacity with further optional load spreading bridges.

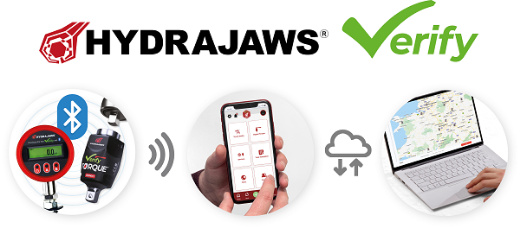

  • Advanced-Data Logging with FREE-to-use App – Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the free-to-use Hydrajaws Verify App Dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
  • Hydrajaws gauge calibration certificate (valid for 12 months).

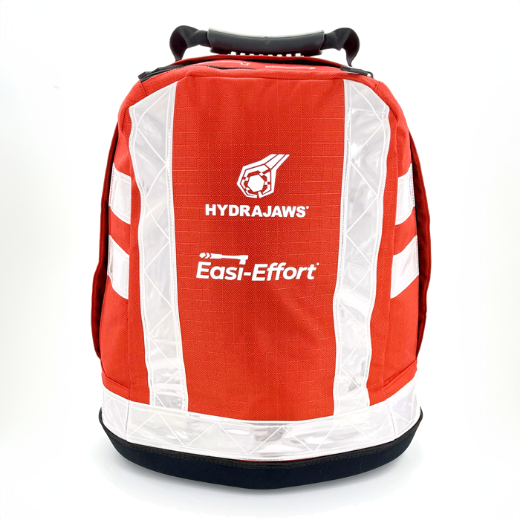

  • It is supplied in a tailor-made rugged rucksack, engineered for easy transportation.
  • Full user manual supplied.

Imperial Kit includes the following adaptors:

  • Bolt test adaptor
  • 20mm and 24mm clevis forks
  • 5 slotted button adaptors: 6.5, 8.5, 10.5, 13, and 16.5mm
  • 6 threaded button adaptors: 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″ UNC
*
*
*
