M35+ Dual Load Capacity Digital Pull Tester 35kN / 7868 lbf (Metric) in Rucksack

The Hydrajaws M35+ Easi-Effort® Dual Load Capacity Digital Pull Tester 35kN can test up to 35kN/7868 lbf (Standard Kit) or 65kN/14613 lbf (Dual Kit) on the same device, with an easily configurable optional bridge setup, without needing a separate tester. This lightweight and ergonomic pull tester is enhanced by Easi-Effort® Technology, increasing testing frequency and reducing operator effort. It is an essential tool for carrying out pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05. The Hydrajaws M35+ arrives in a compact, tailor-made rugged rucksack, engineered for easy transportation to even the most remote and challenging job sites. It comes complete with a comprehensive full-colour user manual and backing and support from our technical team at Hydrajaws. Compatible with the FREE-to-use Hydrajaws Verify PRO App - Digital Reporting System.
SKU: 290-003
Digital Downloads
Availability:
In stock
Price: £1,875.00
i h h

Features

  • The M35+ boasts impressive ‘Easi-Effort®’ technology increasing testing frequency and reducing operator effort.
  • Lightweight and Durable – Crafted from top-grade materials including titanium, the Hydrajaws M35+ is the most lightweight pull tester on the market and is built to withstand the toughest environments.
  • Modular Dual Load Capacity – The powerful tester not only has a 3.5-ton capacity in standard guise, but it also has 6.5-ton capacity with further optional load spreading bridges.

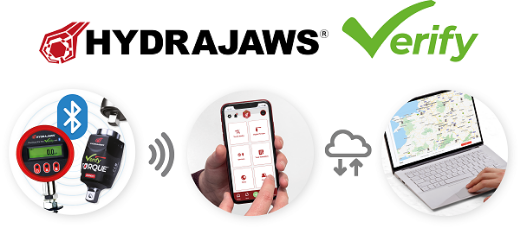

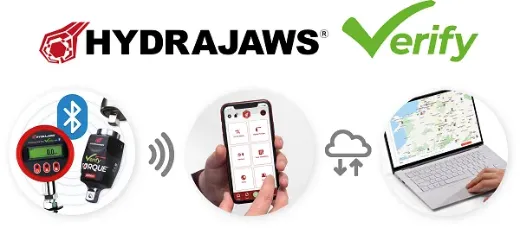

  • Advanced-Data Logging with FREE-to-use App – Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the free-to-use Hydrajaws Verify App
  • Dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
  • Hydrajaws gauge calibration certificate (valid for 12 months).

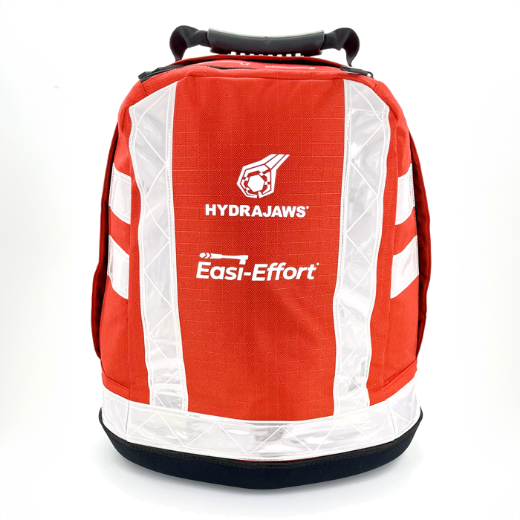

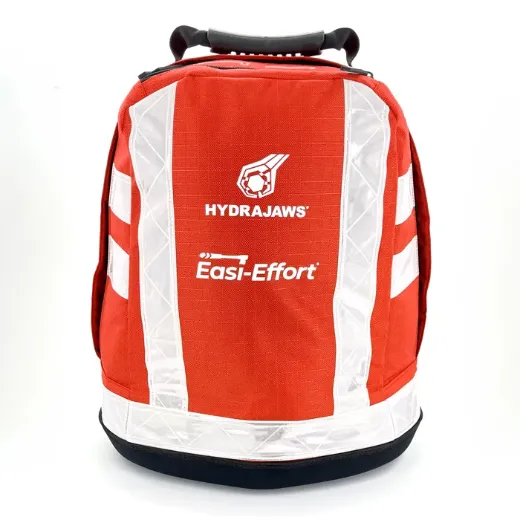

  • It is supplied in a tailor-made rugged rucksack, engineered for easy transportation.
  • Full user manual supplied.

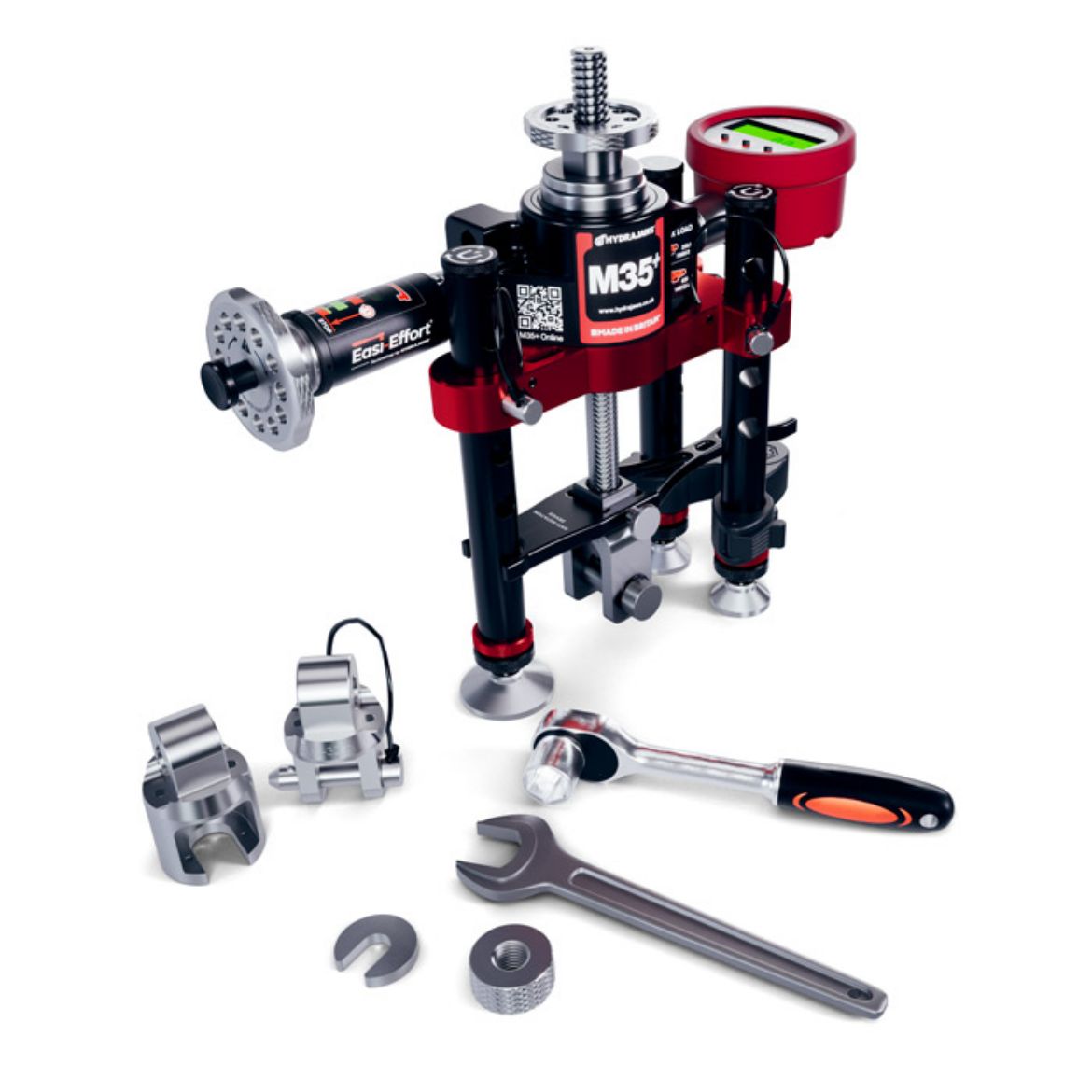

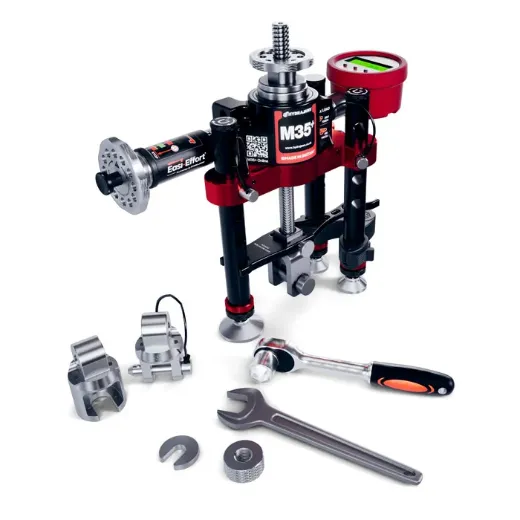

Kit includes the following adaptors:

  • Bolt test adaptor
  • 20mm and 24mm clevis forks
  • 5 slotted button adaptors: 6.5, 8.5, 10.5, 13, and 16.5mm
  • 6 threaded button adaptors: M6, M8, M10, M12, M16 and M20

*
*
*
